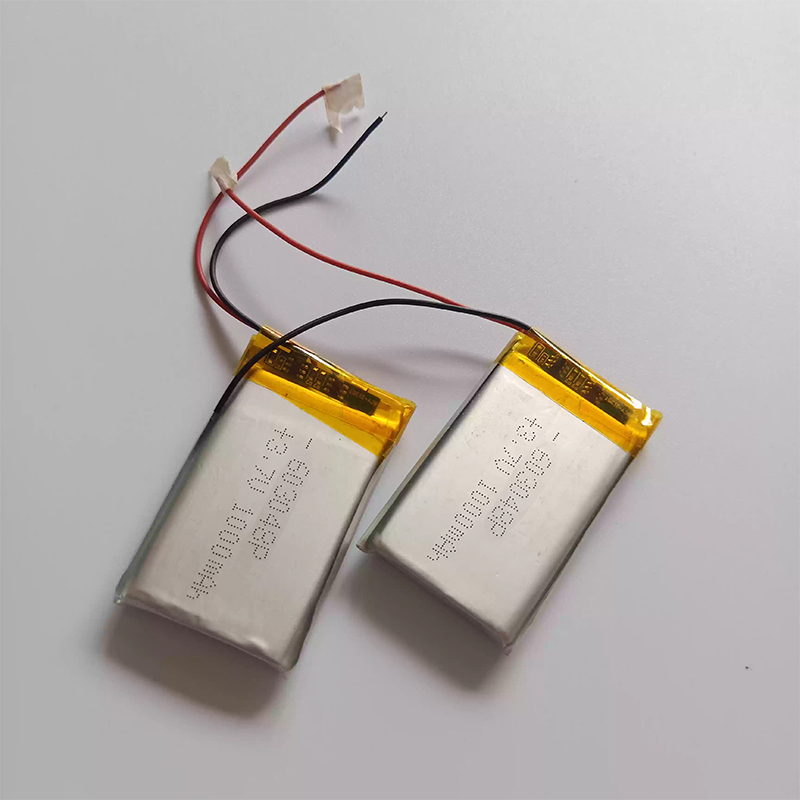

lp603450 603450 3.7v 1000mah lithium polymer battery

No.

Item

Characteristics

Remarks

3.1

Nominal Capacity

Minimum:1050mAh

Typical:1100mAh

Fully charged @0.5C to 4.2V for 2.5 hrs, then discharge to 3.0V @ 0.2C.

3.2

Nominal Voltage

3.7V

3.3

Charging Cut-off Voltage

4.2V

3.4

Discharge Cut-off Voltage

3.0V

3.5

Maximum Constant Charging Current

1100mA

3.6

Maximum Continuous Discharging Current

2200mA

3.7

Operating Temperature

Charge       0~45℃

Discharge    0~60℃

3.8

Storage Temperature

-20~45℃ for 1Month

-20~35℃ for 6Months

3.9

Weight

14g

Approximate value

3.10

Storage Voltage

3.75-3.90V

3.11

Environmental request

RoHS

If the materials of the product and packaging accord with RoHS standard,there will be a RoHS Id on the box.
