Reention Eel E-Bike Battery: The Mini & Pro Series

The Reention Eel battery series is a popular choice for both original equipment manufacturers (OEMs) and e-bike enthusiasts. Known for its sleek, in-frame design, the battery slides discreetly into the down tube of many e-bike frames, providing a clean aesthetic and excellent weight distribution. The series comes in two main sizes, the "Mini" and "Pro," to accommodate different frame designs and capacity needs.

Key Specifications:

• Case Design: The "Eel" name refers to its elongated, slender shape that allows it to be semi-integrated or fully hidden within the bike's frame. This design offers an IP65 water-resistant rating, protecting the cells from light rain and splashes.

• Security: A key-locked system secures the battery to the frame, providing an anti-theft measure while allowing for easy removal for off-bike charging or storage.

Reention Eel Mini (36V):

The Eel Mini is a compact, high-quality battery designed for riders who need a reliable power source for short-to-medium distance rides.

• Voltage: 36V Nominal. A standard voltage for many e-bikes, ideal for motors from 250W to 500W.

• Capacity: Commonly available in 13Ah and similar capacities (e.g., 10.4Ah, 11.6Ah).

• Energy Rating: A 36V 13Ah battery has an energy rating of 468Wh ($36V\times 13Ah=468Wh$).

• Performance: This battery provides a balanced combination of power and range, typically offering a range of 25 to 45 miles on a single charge depending on riding conditions.

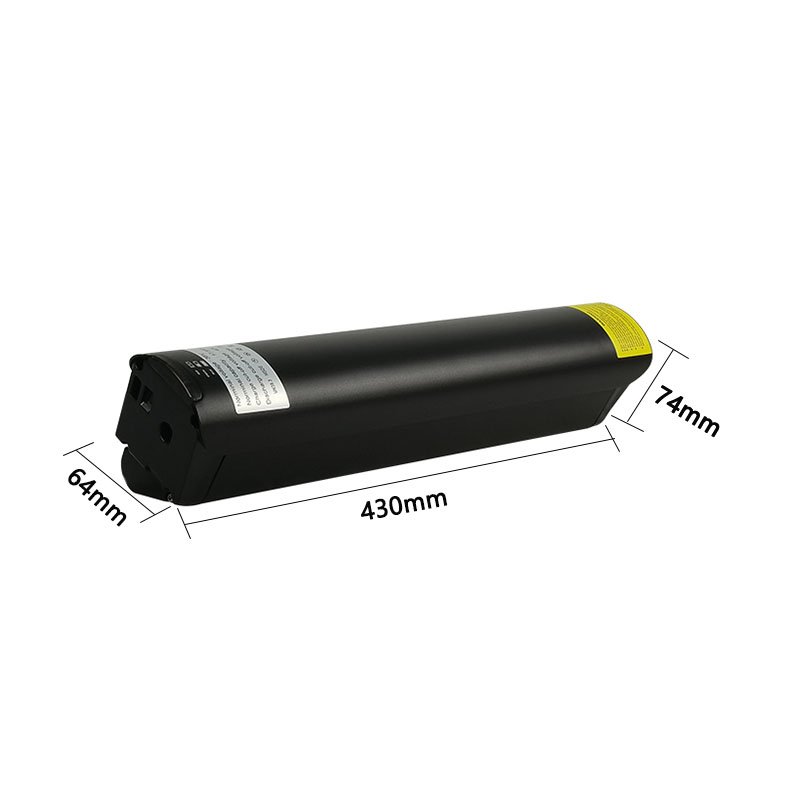

• Dimensions: The Mini version is shorter than the Pro, with typical dimensions around 430mm x 64mm x 74mm.

Reention Eel Pro (48V):

The Eel Pro is a larger, higher-capacity version of the Eel series, built for greater power and extended range.

• Voltage: 48V Nominal. This higher voltage provides a noticeable boost in torque and speed, making it suitable for powerful motors up to 750W or 1000W.

• Capacity: Typically available in 14Ah and other high capacities (e.g., 10.4Ah, 12.8Ah).

• Energy Rating: A 48V 14Ah battery provides a significant energy reserve of 672Wh ($48V\times 14Ah=672Wh$), which is essential for long-distance riding and high-power consumption.

• Performance: With its higher voltage and capacity, the Eel Pro offers an extended range, with a typical range of 30 to 50 miles or more, depending on usage.

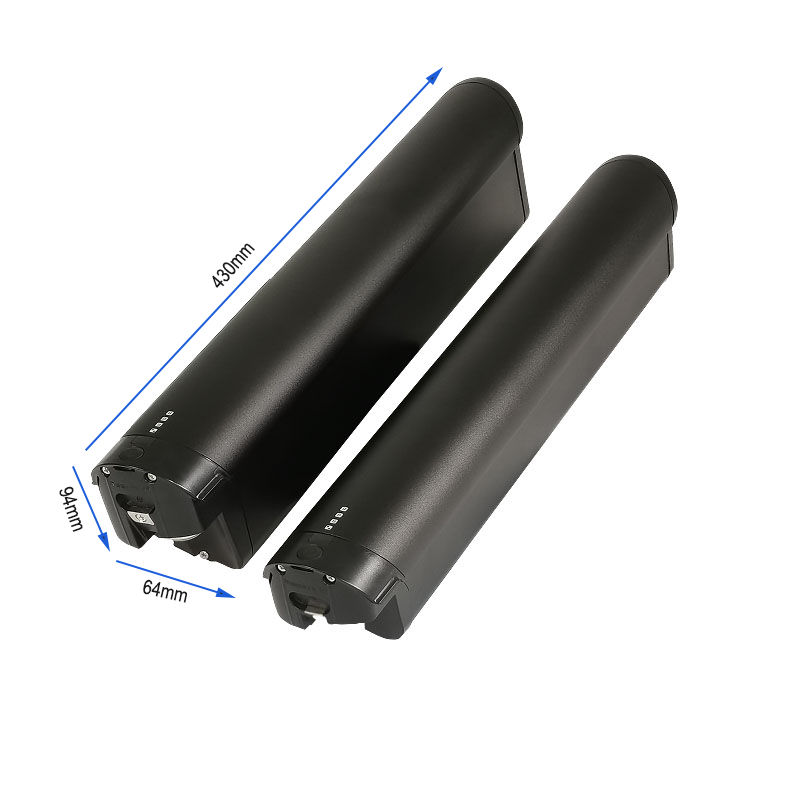

• Dimensions: The Pro version is taller and sometimes longer than the Mini, with typical dimensions around 430mm x 64mm x 94mm.

Shared Features for Both Models:

• High-Quality Cells: Reention batteries are often built with A-grade cells from top-tier manufacturers like Samsung, LG, or Panasonic, ensuring consistent performance, long lifespan, and safety.

• Advanced BMS: A built-in Battery Management System (BMS) is a crucial safety feature. It protects the battery from over-charging, over-discharging, over-current, and short circuits, extending its overall life and reliability.

• Wide Compatibility: The Reention Eel series is a direct replacement for many e-bike brands, including Ride1up Core-5, Ride1up LMT'D, and others that use a compatible in-frame battery case. It's an excellent choice for DIY builders due to its widespread availability and standardized design.
