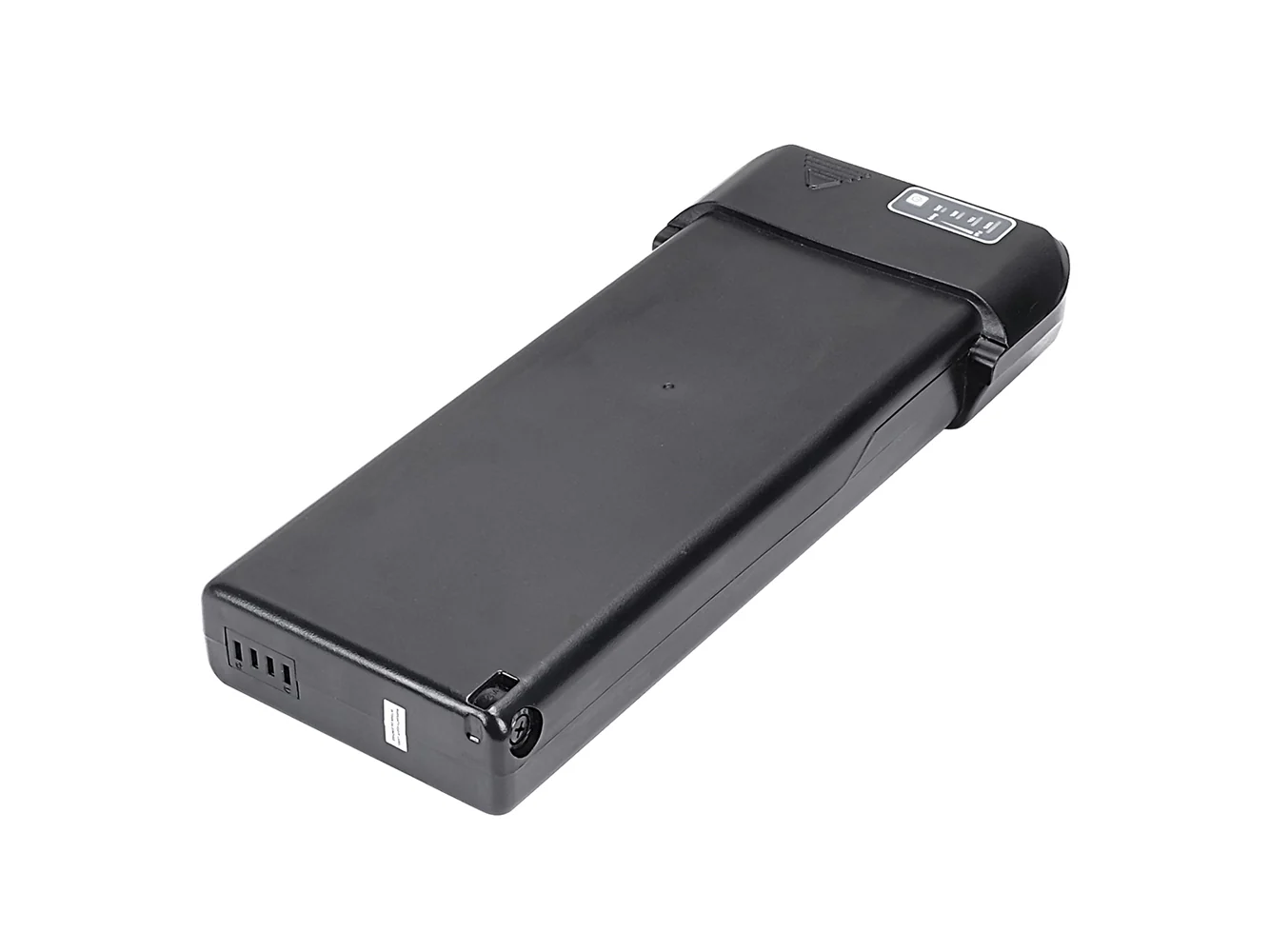

36V rear rack battery Electric Bicycle Battery pack for MIFA, Rehberg, Zündapp, Victoria

Model

Junda-J0029

Chemistry

LiNiCoMnO2

Nominal Voltage

36V

Nominal Capacity

10.4Ah  12.8ah 14ah

Weight

Approx 3.5KG/4.5Kg

Outer case

rear rack case

Dimension

318*126*44*148mm

Standard Charge

Constant Current 0.2C, Constant Voltage 42V 100mA Cut-off

Fast Charge

Constant Current 0.5CA, Constant Voltage 42V 100mA Cut-off

Standard Discharge

Constant Current 0.2C/End Voltage 30V

Cycle Life

500 times with DOD80%

Continuous Discharge Current

12A or customized

Peak discharge current

36A or customized

BMS function

Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Balance

Storage Temperature Range

Temperature: -10-40℃

Relative humidity:45-75%

Pressure: 86-106KPa
