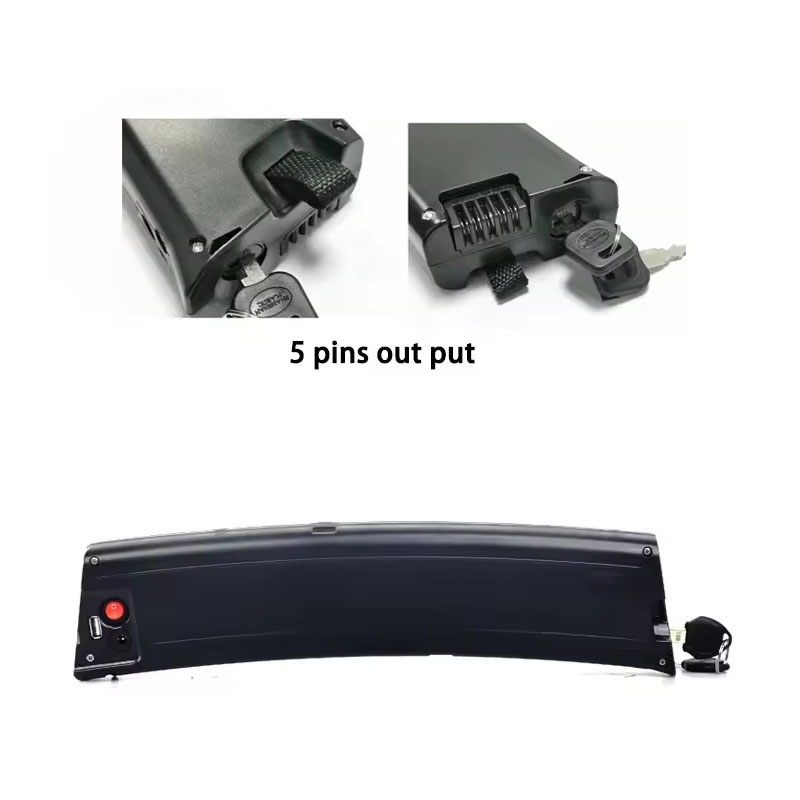

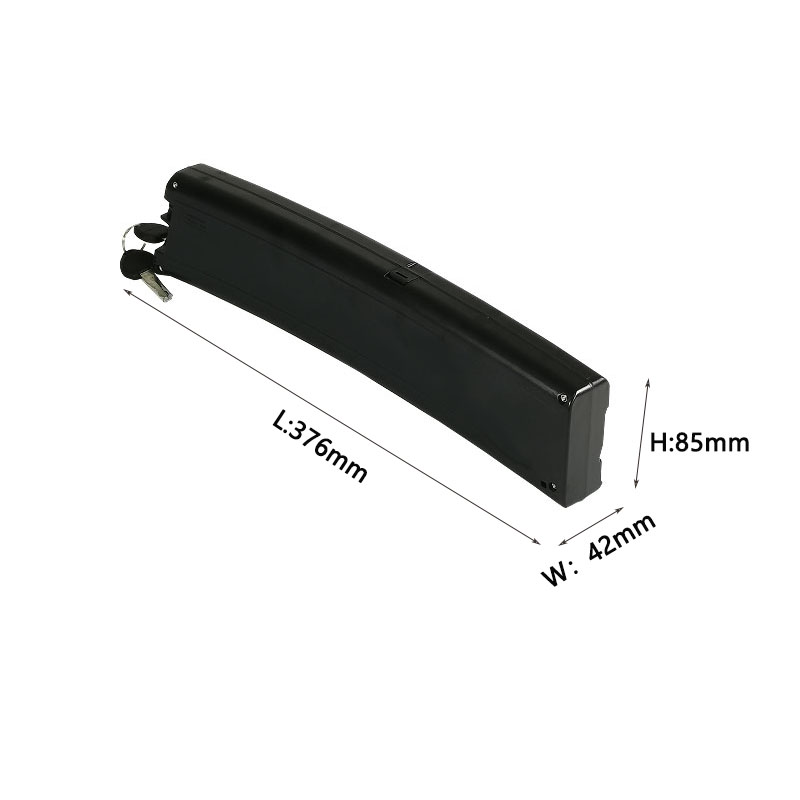

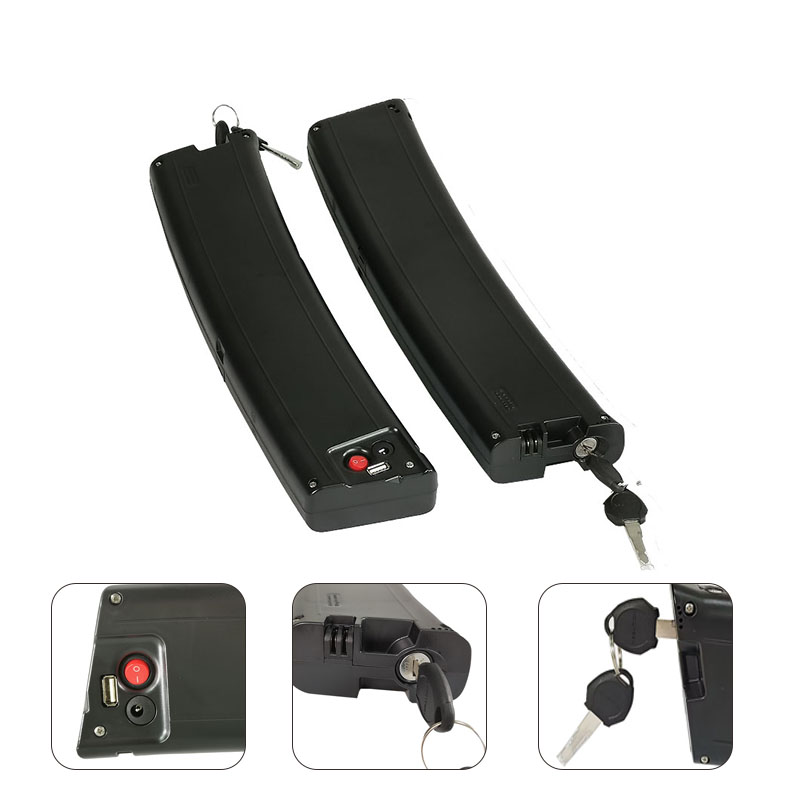

Westhill Link 36V 10Ah Lithium "Scimitar" Battery Description
This is a replacement or spare battery specifically designed for the Westhill Link folding electric bike, as well as several other models that use the same "Scimitar" or curved-style downtube battery case. The name "Scimitar" comes from its curved, sleek design that integrates seamlessly into the frame of the folding bike, giving it a clean and hidden look.


Key Specifications:
Battery Type: Lithium-ion (Li-Ion)

Voltage: 36V

Capacity: 10Ah or 10.5Ah (some listings specify 10.5Ah, which is an uprated version for extended range)

Battery Cells: Often uses high-quality branded cells, such as Samsung or LG, for reliability and longevity.

Configuration: Typically a 10S3P configuration (10 cells in series, 3 in parallel).

Weight: Approximately 2.75 - 4.7 kg (varies slightly by manufacturer).

Range: The 10.5Ah version can provide a range of up to 30 miles (or more, depending on factors like rider weight, terrain, and assist level).

Features and Design:
Integrated Design: The curved shape allows the battery to slide into the bike's frame, offering a balanced feel and a discreet appearance.

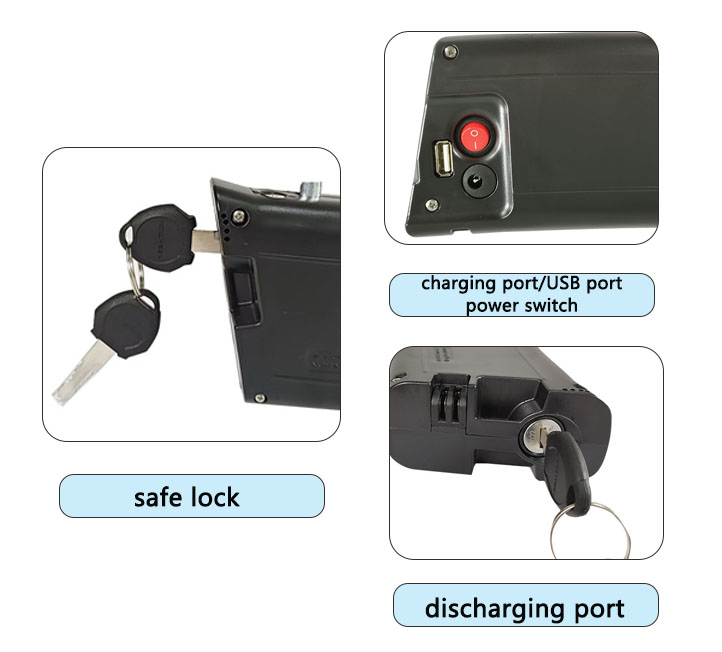

Security: Comes with two keys to lock the battery securely to the frame, preventing theft.

Safety: Equipped with an internal Battery Management System (BMS) that provides protection against:

Over-charging

Over-discharging

Over-current

Short circuits

High temperatures

Convenience: Features an on/off switch on the battery itself. It is designed to be easily removed for charging at home.

Charging: A full charge typically takes around 4.5 to 6 hours. It is recommended to use the charger supplied with the battery for optimal performance and safety.


Compatibility:
This type of battery is known to be compatible with a range of electric bicycles, including:

Westhill Link Folding Electric Bike
Carrera Crosscity Folding Electric Bike
Powabyke F100
Powabyke West Hill
Dawest Arc 2
Viking Gravity
Link Apollo Smart S2

The battery typically has a 2-pin connection for models pre-2021. It's always best to check the specific pin connection on your bike's frame to ensure compatibility before purchasing a replacement.
