24V e-bike batteries

  • 10Ah 24v 48v Water Bottle Battery For E-Bike 36v

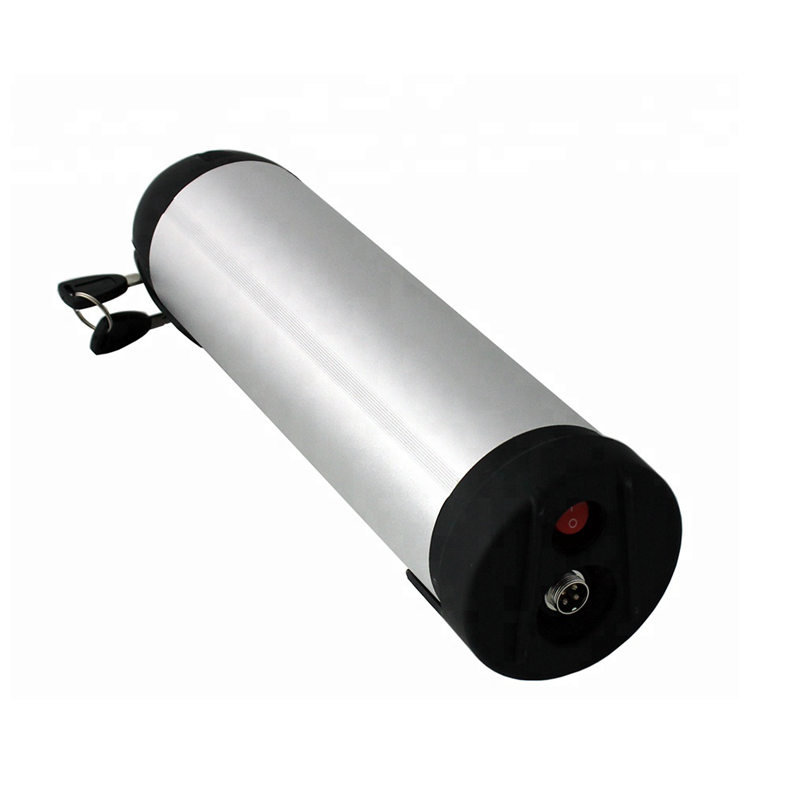

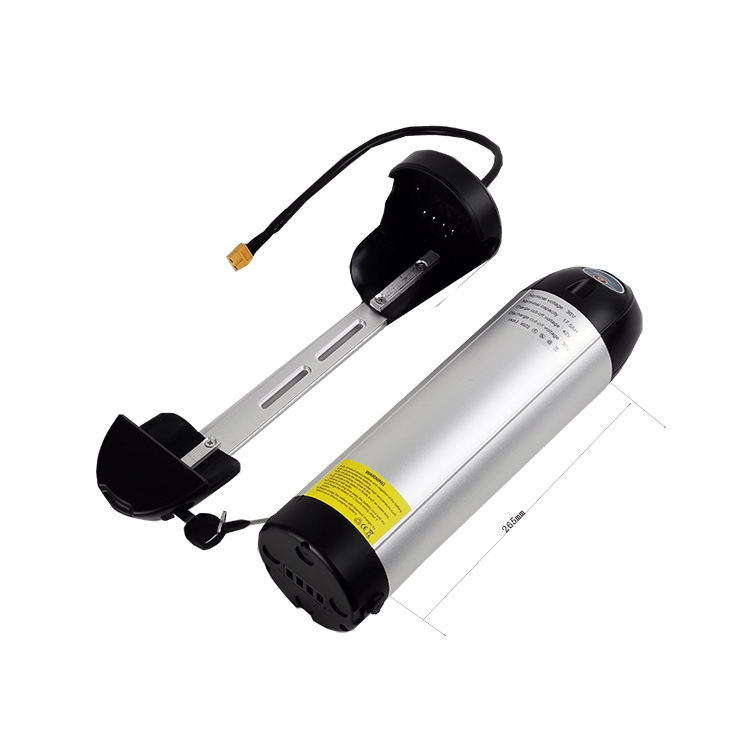

10Ah 24v 48v Water Bottle Battery For E-Bike 36v

10Ah 24v 48v Water Bottle Battery For E-Bike 36v

  • Water Bottle model
  • Brand:junda / OEM / ODM
  • 2 year warranty
  • Product description: 10Ah 24v 48v Water Bottle Battery For E-Bike 36v
  • INQUIRY

10Ah 24v 48v Water Bottle Battery 36v For E-Bike specification:

Nominal voltage:24V 36v 48v
Norminal capacity:10Ah or customized
Charge voltage:29.6V/42v/54.6v
Battery cell:18650 3300mah/3400mah/3500mah
Structure:8S3P/10S5P/10S6P/10S7P/13S5P or customized

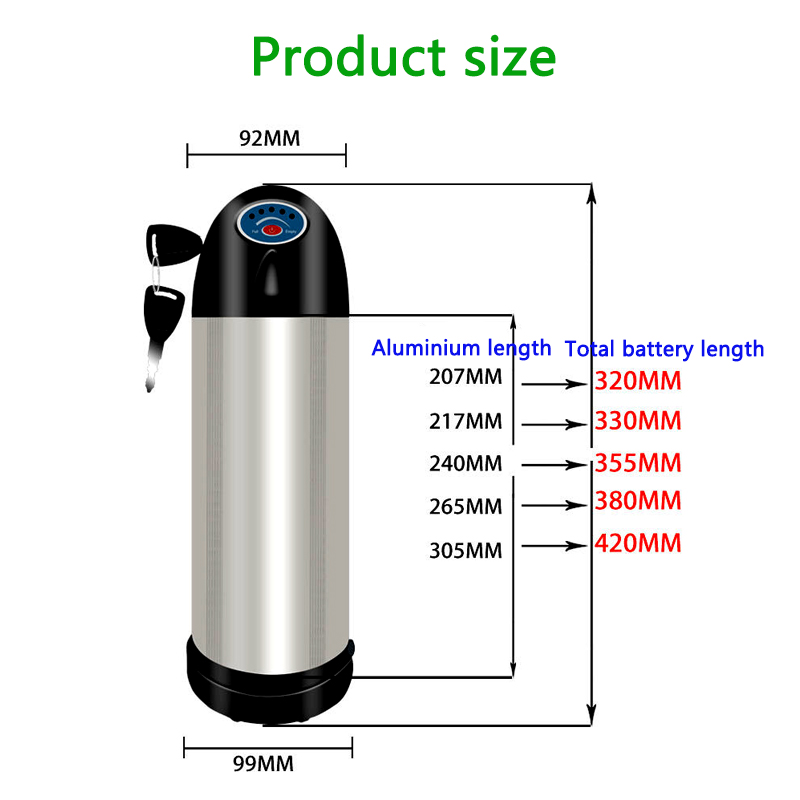

Dimension:95mmx95mmx325mm/95mmx95mmx375mm/95mmx95mmx415mm
Working current:10A
Peak discharge current:30A
Operating temperature(charging): 0°C-45°C
Operating temperature(discharging): -10°C-45°C
PCM Specification:
Operating current: 10-20A
Peak current: 20-30A
Charge current: 2A
Over-voltage protection: 29.2V
Under-voltage protection: 16V
Over-temperature protection: 60°C
Features:
Long cycle life
Maintenance-free operation
Good safety performance
Low self-discharge and fast charge
Environment friendly
High capability and stability.
