Battery pack

  • 602030 3.7v 300mah lipo battery
  • 602030 3.7v 300mah lipo battery
  • 602030 3.7v 300mah lipo battery
602030 3.7v 300mah lipo battery602030 3.7v 300mah lipo battery602030 3.7v 300mah lipo battery

602030 3.7v 300mah lipo battery

  • Votage:3.7v
  • Brand:Junda / OEM / ODM
  • 2 year warranty
  • Product description: 602030 3.7v 300mah lipo battery pack small capacity
  • INQUIRY

1.Model:602030 Lithium Ploymer Battery

2.Voltage:3.7V

3.Capacity:300mAh

4.Weight:6.5g

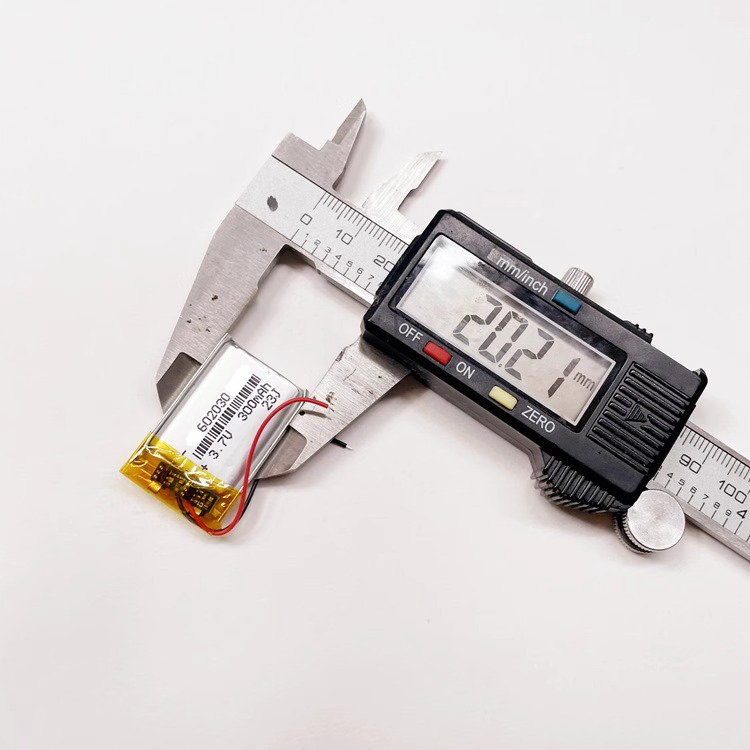

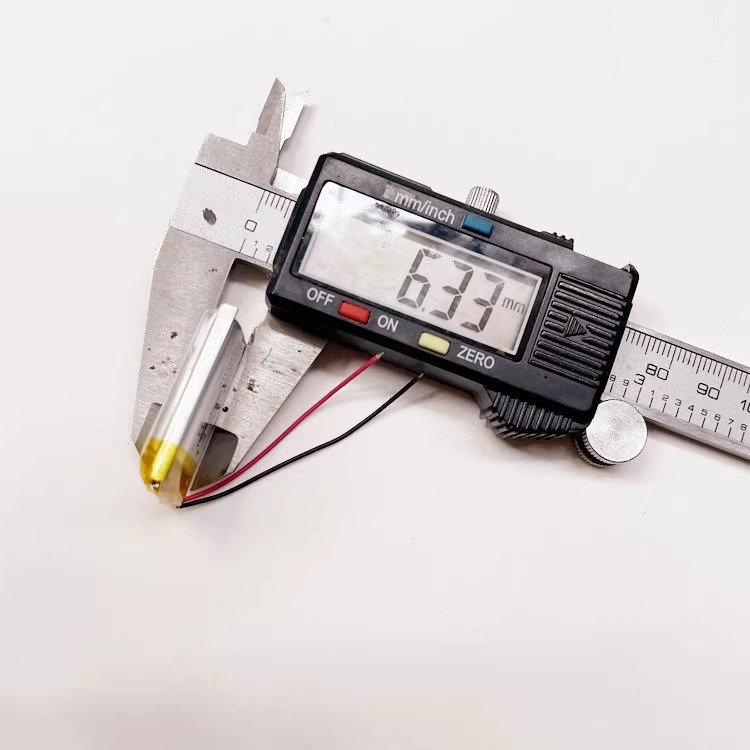

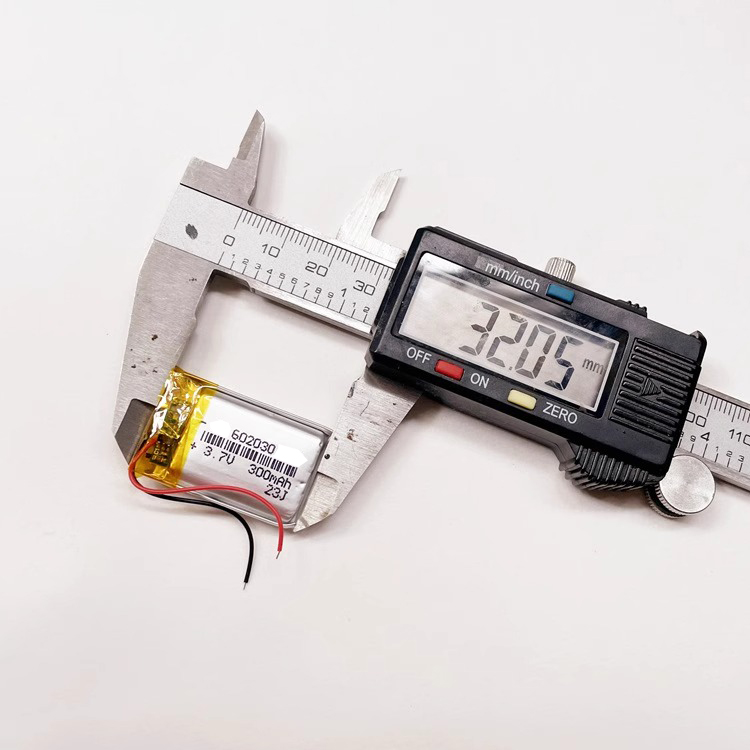

5.Dimension: 6.2*21.0*32.5mm


Parameter Table:

Item

Rating

Note

3.1    Capacity

Typical

300mAh

Discharge:0.2CmA

cut off Voltage:3.0V for cell

Minimum

270mAh

3.2    Nominal Voltage

Average  3.7V

Discharge:0.2CmA

cut off Voltage:3.0V for cell

3.3    AC Impedance Resistance

≤200mΩ

3.4    Discharge Cut-off Voltage

3.00V

3.5    Charge Current

60mA

Standard Charge

3.6    Charge Voltage

4.2V

3.7    Max. Charge Voltage

4.23V

3.8    Storage Humidity

<75%RH

Hygrometer

3.9    Max. Charge Current

300mA

1.0CmA

3.10   Max. Discharge Current

300mA

3.11   Weight

Approx 6.5g

3.12  Operating

Temperature

Charge

0~+45°C

Discharge

-20~+60°C

3.13  Storage

Temperature

less than 1 month

-20~+45°C

Recommended storage

temperature: 20°C,at the

shipment state

less than 3 months

-20~+35°C


Main functions and features:


1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
