Battery pack

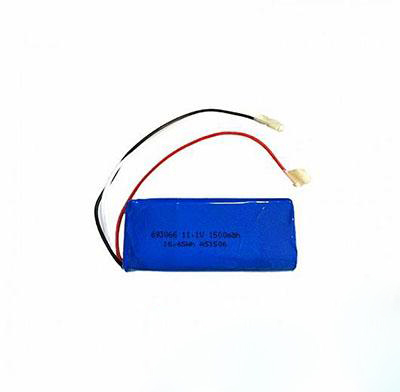

693066 11.1v 1500mah lipo battery

Votage：11.1v
Brand:Junda / OEM / ODM
2 year warranty
Product description: 693066 11.1v 1500mah lipo battery
INQUIRY

1.Model:JD693066 Lithium Ploymer Battery

2.Voltage:11.1V

3.Capacity:1500mAh

4.Weight:97.3g

5.Dimension: 21.0*31.0*71.0mm

Parameter Table:

Item			Rating	Note
3.1 Capacity		Typical	1500mAh	Discharge:0.2CmA cut off Voltage:3.0V for cell
		Minimum	1425mAh
3.2 Nominal Voltage			Average 3.7V	Discharge:0.2CmA cut off Voltage:3.0V for cell
3.3 AC Impedance Resistance			≤180mΩ
3.4 Discharge Cut-off Voltage			9.00V
3.5 Charge Current			300mA	Standard Charge
3.6 Charge Voltage			12.6V
3.7 Max. Charge Voltage			12.69V
3.8 Storage Humidity			<75%RH	Hygrometer
3.9 Max. Charge Current			1500mA	1.0CmA
3.10 Max. Discharge Current			1500mA
3.11 Weight			Approx 97.3g
3.12 Operating Temperature	Charge		0~+45°C
	Discharge		-20~+60°C
3.13 Storage Temperature	less than 1 month		-20~+45°C	Recommended storage temperature: 20°C,at the shipment state
	less than 3 months		-20~+35°C

Main features:

1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
