36v e-bike battery

  • 36v 10ah rear rack ebike battery 48v

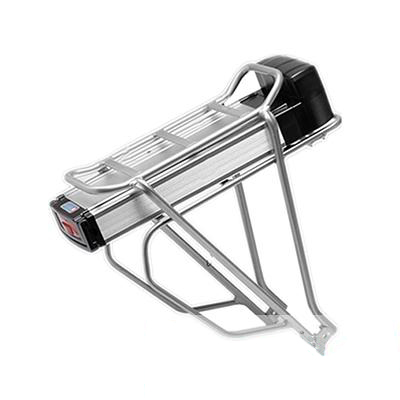

36v 10ah rear rack ebike battery 48v

36v 10ah rear rack ebike battery 48v

  • rear rack ebike battery
  • Brand:junda / OEM / ODM
  • lithium ion battery cell
  • Product description: 36v 10ah electric bike battery 36v 10ah rear rack battery 36v 500w lithium ion battery pack with 42V 2A charger
  • INQUIRY

36v 10ah rear rack ebike battery 48v specification:

Nominal voltage:36V 48v 52v

Norminal capacity:10Ah

Charge voltage:44.4V

Battery cell:26650 3300mah

Battery Structure:12S3P(Add PCM )

Inner size:146*52*300mm

External dimension:150*56 *436mm

Working current:20A

Peak discharge current:30A

Operating temperature(charging): 0°C-45°C

Operating temperature(discharging): -10°C-60°C

Weight (Approx.):6±0.05kg

PCM Specification:

Operating current: 10-20A

Peak current: 20-30A

Charge current: 2A

Over-voltage protection: 44.4V

Under-voltage protection: 24V

Over-temperature protection: 60°C


Features:

Long cycle life

Maintenance-free operation

Good safety performance

Low self-discharge and fast charge

Environment friendly

High capability and stability
