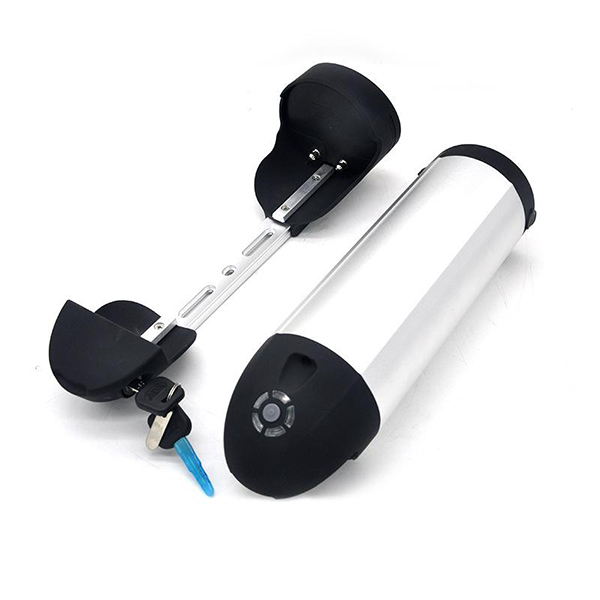

1. Basic Characteristics for 48v water bottle battery 36v 20ah ebike battery |
||
Weight |
5.5kg |
|
Model |
junda-S023 |
|
Dimension(D*H) |
90*90*415mm |
|
Working temperature |
Charge Temperature |
0~45°C |
Discharge Temperature |
-20~65°C |
|
Retention of charge (store in one month) |
≥95% |
|
2. Technical Data |
||
Rated Voltage |
36V |
|
Rated Capacity C1 |
20ah |
|
Battery Resistance |
≤100mΩ |
|
Charge |
Way of Charge |
CC/CV(Constant Current;Constant Voltage) |
Standard Charge Current |
2A |
|
Max Charge Current |
5A |
|
Max Charge Voltage |
30V |
|
Cell OverCharge Protection Voltage |
4.2V/Cell |
|
Discharge |
Continuous Discharge Current |
15A |
Peak Discharge Current |
>=40A |
|
Discharge Cut-off Voltage |
21V |
|
Cell Overdischarge Protection Voltage |
2.8V/cell |
|
Ratio Discharge |
1C |
>96%C1 |
2C |
>93%C1 |
|
3C |
>90%C1 |
|
Cycle Life |
≥ 800 Cycles |
|
3. Safety Test |
||
Short Circuit Safety Test |
No fire, No explosion |
|
Overcharge Safety Test |
||
Crush Safety Test |
||
Needling Safety Test |
||
Extrusion Safety Test |
||
130°C High Temperature Safety Test |
